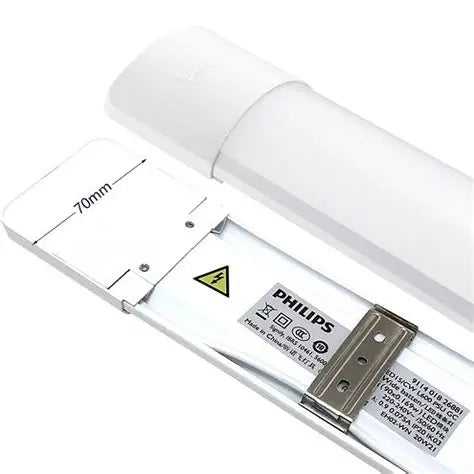

Philips Essential Smartbright Wide Batten BN005C, 20 W, 2200 lm,Symmetrical
-
Estimated Delivery:Jun 24 - Jun 28
-
Free Shipping: On all orders over Rs. 50000/-
Product Description.
The Philips Essential Smartbright Wide Batten BN005C 20 W is an LED linear batten luminaire designed for general indoor lighting needs. It’s part of Philips’ Essential Smartbright series — a value‑focused range that delivers efficient LED illumination with good color quality and reliable performance. The fixture has an integrated LED light source with a built‑in driver and is ideal for everyday applications in homes, offices, shops, corridors, and utility areas.
✅ Key Features
-
Product Type: LED Wide Batten Luminaire (integrated LED)
-
Model: BN005C
-
Power Consumption: 20 W (LED)
-
LED Engine: Integrated LED with electronic driver included
-
Input Voltage: 220 – 240 V, 50/60 Hz
-
Color Rendering Index (CRI): ≥ 80 (good color quality)
-
Beam Angle: ~115° symmetrical wide distribution
-
Warranty: ~2 years
-
Operating Temperature: Typically –20 °C to +40 °C
-
Suitability: Designed for random switching (non‑dimmable)
-
Protection Class: Safety Class II (double insulation, no earth required)
-
Ingress Protection: IP20 (indoor protection against solid objects but no water resistance)
-
Housing: White polycarbonate (typical) / Opal diffuser
📌 Note: Different versions of BN005C that are 20 W may have slightly different luminous output depending on correlated color temperature (CCT), e.g., ~1,100 lm at 3000 K or ~2,200 lm at 4000–6500 K — see table below.
📊 Technical Specifications (Typical for 20 W BN005C)
| Specification | Typical Value |
|---|---|
| Power Consumption | 20 W (nominal) |
| Input Voltage | 220–240 V, 50/60 Hz |
| Luminous Flux | ~1,100 – 2,200 lm (depends on CCT) |
| Correlated Color Temperature (CCT) | ~3000 K / ~4000 K / ~6500 K options |
| Color Rendering Index (CRI) | ≥ 80 |
| Luminous Efficacy | ~105 – 110 lm/W (varies by CCT) |
| Beam Angle | ~115° |
| LED Type | Integrated LED module |
| Driver Type | Electronic LED driver (built‑in) |
| Protection Rating | IP20 / IK02 (indoor) |
| Life Expectancy | Typical long life (LEDs ~15,000 – 25,000+ hours, depending on use) — manufacturer figures implied but not always specified |
